Descrição

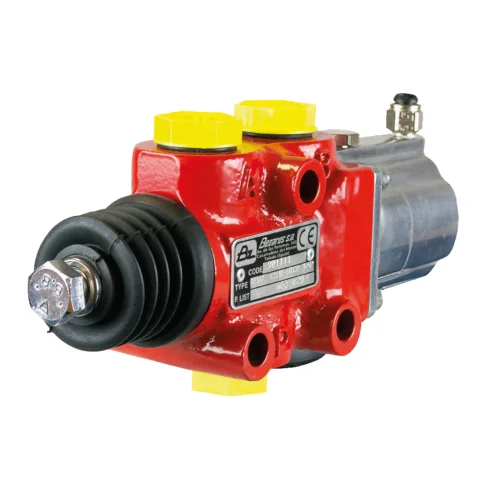

Circuit selector valve with pneumatic shifting to operate from the cabin of the vehicle.
Circuit selector valve with pneumatic shifting to operate from the cabin of the vehicle.
Peso | N/A |
---|---|
Dimensões (C x L x A) | N/A |
Thread | 1" GAS, 3/4" GAS |
Maximum pressure | 350 Bar |
Maximum pressure to working slide | 250 Bar |
Maximum flow | 200 L/min (1" GAS), 150 L/min (3/4" GAS) |
Air pressure | 7-10 Bar |

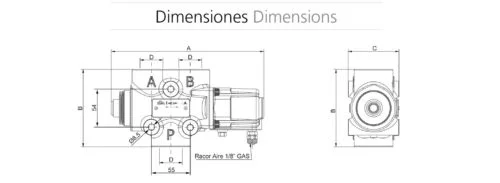

Dimensions (mm.) A | 217 (1" GAS), 196 (3/4" GAS) |
Dimensions (mm.) B | 110 (1" GAS), 80 (3/4" GAS) |
Dimensions (mm.) C | 72 (1" GAS), 64 (3/4" GAS) |
Dimensions (mm.) D | Thread |
