Description
Axial Piston pump with reversible Rotation direction.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Type | BZ 12, BZ 20, BZ 30, BZ 40, BZ 50, BZ 58, BZ 61, BZ 71, BZ 81, BZ 101 |
| Pump Size | |
| Displacement (cm3/rev) | 11.7 (BZ 12), 21.5 (BZ 20), 32.4 (BZ 30), 40.5 (BZ 40), 48.5 (BZ 50), 58.3 (BZ 58), 60 (BZ 61), 70 (BZ 71), 80 (BZ 81), 100 (BZ 101) |
| Maximum peak pressure (P3) (bar) | |
| Operating pressure (kg/cm2) max. cont. | 250 (BZ 12, BZ 20, BZ 30, BZ 40 and BZ 50), 230 (BZ 58) |
| Operating Speed (r.p.m) max. | 2000 (BZ 12 and BZ 20), 1700 (BZ 30), 1600 (BZ 40 and BZ 50), 1500 (BZ 58) |
| Operating Speed (r.p.m) max. cont. | 1700 (BZ 12 and BZ 20), 1400 (BZ 30), 1300 (BZ 40 and BZ 50), 1200 (BZ 58) |
| Input Pressure (recommended) | |
| Temperatures | |
| Recommended oil | The specification of the fluid must conform to DIN 51524 / 51525 (type HLP). |
| Viscosity recommended | De 12 ÷ 100 mm2/s (cST) |
| Viscosity allowed | |

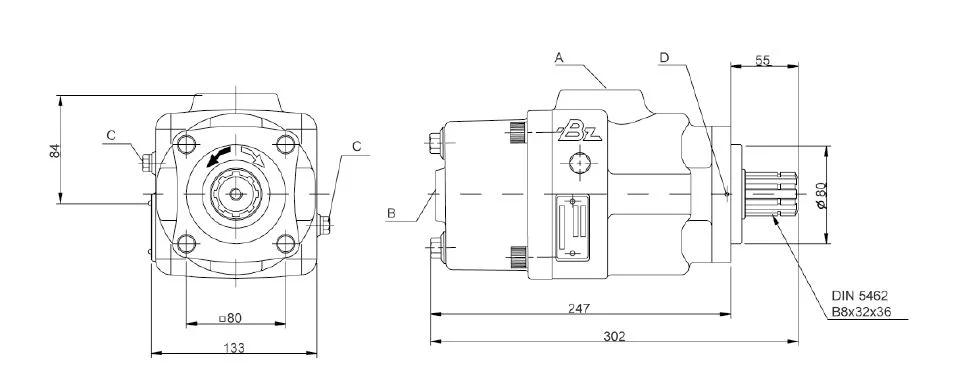

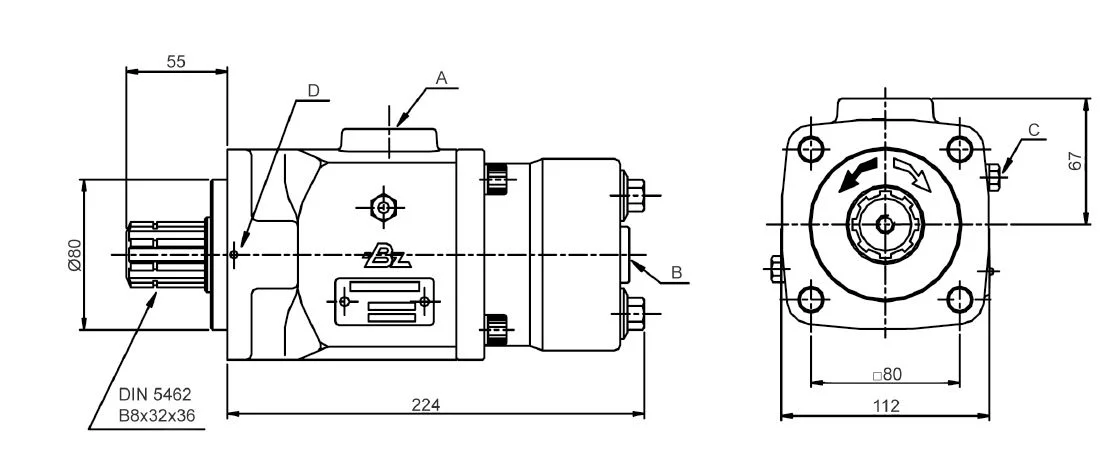

| Note A (BZ 12, BZ 20, BZ 30) | Oil Inlet, thread = BSP 1” |
| Note A (BZ 40, BZ 50, BZ 58) | Oil Inlet, thread = BSP 1 1/4” |
| Note B | Oil outlet, thread BSP 1/2” |
| Note C | Oil drain plug |
| Note D | Drain hole (Between shaft-Seals) |
