Description
150 liters proportional open circuit or close circuit tipping valve, pneumatic operated, with 350 bar relief valve. It also includes check valve, pull-push end of stroke, pressure switch as option and pressure connection port.
150 liters proportional open circuit or close circuit tipping valve, pneumatic operated, with 350 bar relief valve. It also includes check valve, pull-push end of stroke, pressure switch as option and pressure connection port.
Information complémentaire
| Poids | N/A |
|---|---|
| Dimensions | N/A |

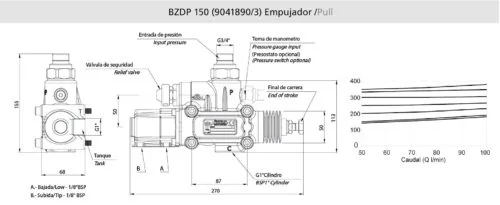

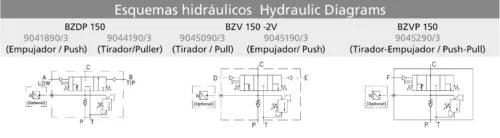

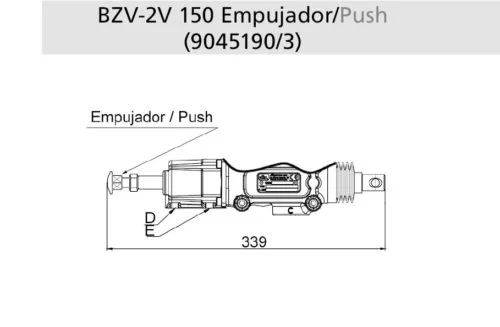

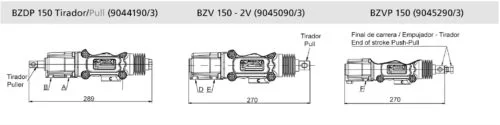

| Type | BZDP 150 (pull), BZDP 150 (push), BZV 150-2V (push), BZV 150-2V (pull), BZVP 150 (push- pull) |
| Input Flow | 100 L. |
| Low Flow | 150 L. |
| Max. pressure | 350 Bar |
| Thread | 1” BSP |
| Note A | Low 1/8” BSP |
| Note B | Tipping 1/8” BSP |
| Note D | Rapid 1/8” BSP |
| Note E | Slow 1/8” BSP |
| Note F | Proportional Lowering 1/8”BSP |

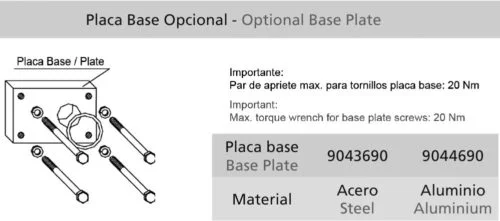

| Optional Max. torque wrench for base plate screws : | 20 Nm. P/N: 9043690 |
