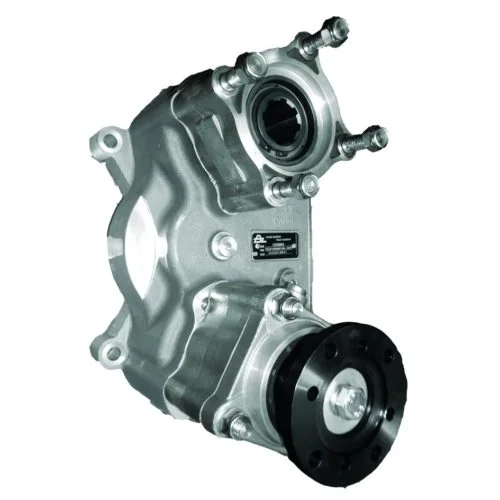

Name: 1026950 Rear Pneumatic Heavy Duty
SKU: 1026950

Descrição

Heavy duty Power Take-off, twin output, with straight lubrication, same ratio in both outputs 1:1,60. Mounting on rear 5 bolts-window of the Gearbox.

Informação adicional

Sense of rotation (Pump)	ClockWise
Sense of rotation (Flange)	Anti ClockWise
Max. Continuous Torque for both outputs working together	600 Nm
Power (1000 r.p.m.)	70C.V // 53kW
Max. torque (Nm)	500
Weight (Kg)	22.4
Mounting Position	Rear
Note A	Air connection, thread 1/8” BSP
Note B	Rotation
Note C	Oil drain plug
Note D	Flange drive
Note E	Passing contact switch. P/N 9024999
Note F	Return hose connection
Note G	On continuous works & high torque: Install an oil cooler
Caixa de Câmbios	12AS-2540TD-15.86-1.0, 12AS-2301TD, 12AS-2540TO-12.29-0.78, 12AS-2301TO, 12AS-2530TO-12.33-0.78, 12AS-2331TD, 12AS-2740TO-12.29-0.78, 12AS-2341TD, 12AS-2940TO-12.29-0.78, 12AS-2431TD (Intarder), 16AS-2230TD/17.03-1.0, 12AS-2531TO (Intarder), 16AS-2601TO/14.12-0.83, 12AS-2541TO, 12AS-1630TD-15.86-1.0, 16AS-2630TO/14.12-0.83, 12AS-2741TO, 12AS-1930TD-15.86-1.0, 12AS-1631TD, 12AS-2941TO (Intarder), 12AS-1930TO-12.33-0.78, 12AS-1800, 16AS-2200, 12AS-2130TD-15.86-1.0, 12AS-1800 (Intarder), 16AS-2200 (Intarder), 12AS-2130TO-12.33-0.78, 12AS-1931TD, 16AS-2231TD, 12AS-2140TD-15.86-1.0, 12AS-1931TO, 16AS-2601TD, 12AS-2330TD-15.86-1.0, 12AS-2131TD, 16AS-2601TD (Intarder), 12AS-2340TD-15.86-1.0, 12AS-2131TO, 16AS-2631TO (Intarder), 12AS-2430TD-15.86-1.0, 12AS-2141TD, 12AS-2601TO (Intarder)
