Description

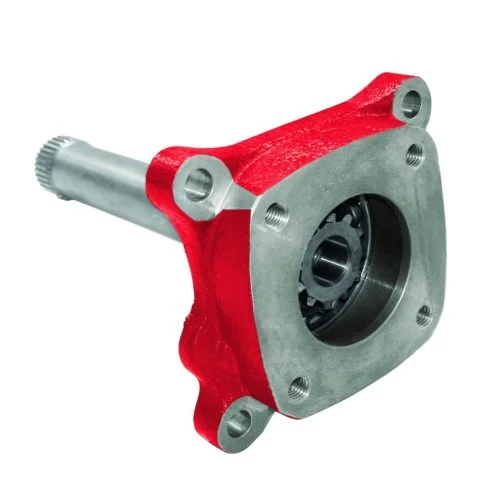

The Power take-off’s for the gearbox R1000, R1400, R1700, SR1400, SR1700, SR1900, SR2000 with or without retarder consists of this adapter kit with flange and the take-off base (ZF).

ENGINE TO PTO RATIOGearboxHighNormal
R1000, R1400, R1700, VT1708, VT2009B1: 0,700
SR1400, SR1700,SR19001: 0,8801: 0,700
SR20001: 0,8201: 0,650
SRO24001: 1,0301: 0,820
VT2014B, VT2214B1: 0,8801: 0,700
VT2412B1: 0,9031: 0,700
VT2514B1: 0,8801: 0,700
VTO2214B, VTO2514B1: 1,0941: 0,880
VTO2814B1: 1,121: 0,890
NOTES
1Adapter housing
2Allen head screw
3Ball bearing
4Adapter ShaftL = 267 mm
L = 302 mm
5Circlip DIN 471
6Gasket
7Gasket
8Washer



Information complémentaire

Continuous Torque (Nm)

Intermittent Torque (Nm)

Power (1000 r.p.m.)

Mounting Position

Weight (Kg)
