Descripción

Toma de fuerza 2 salidas independientes y varias relaciones internas. Accionamiento neumático y diferentes tipos de salida. ISO 4 Tal, SAE B, SAE C, etc.

RELACIÓN INTERNA CB



transmisión

RELACIÓN

transmisión

RELACIÓN

transmisión

RELACIÓN

transmisión

RELACIÓN
1(96%) 2 (89%) 1(96%) 2 (89%) 1(96%) 2 (89%) 1(96%) 2 (89%)
RT509 0,753 0,679 RT6610 0,747 0,675 RT11613 1,036 0,936 RTO14609A 1,386 1,252
RT510 0,753 0,679 RTO6610 0,934 0,844 RT11613C 1,036 0,936 RTO14609B 1,167 1,055
RT609 0,753 0,679 RT6613 0,747 0,675 RTF11613 1,036 0,936 RTX14609A 1,386 1,252
RTO609 0,934 0,844 RTO6613 0,935 0,844 RTO11613 1,036 0,936 RTX14609B 1,140 1,030
RT610 0,753 0,679 RT7609 0,753 0,679 RTOF11613 1,036 0,936 RTOF14609A 1,386 1,252
RT613 0,753 0,679 RTO7609 0,992 0,897 RTOO11613 1,167 1,055 RTOF14609B 1,167 1,055
RTO613 0,934 0,844 RTX7609 0,992 0,897 RTOOF11613 1,167 1,055 RTOX14609B 1,167 1,055
T905G 1,036 0,936 TA7610 1,036 0,936 RTOOX11613 1,167 1,055 RT14610 1,036 0,936
RT906 1,036 0,936 RT7613 0,747 0,675 RTX11613B 1,386 1,252 RTO14610 1,310 1,183
RT906A 1,036 0,936 RTO7613 0,747 0,675 RT11615 1,036 0,936 RT14613 1,036 0,936
RTF906 1,036 0,936 RT8608L 0,838 0,756 RTO11615 1,310 1,183 RT14613B 1,036 0,936
RTF906A 1,036 0,936 RT9509A 1,036 0,936 RTOX11708LL 1,397 1,261 RTF14613 1,036 0,936
RT909 1,036 0,936 RT9509C 1,036 0,936 RT11709H 1,009 0,912 RTLO14613B 1,036 0,936
RT909A 1,036 0,936 RTF9509A 1,036 0,936 RTX11709B 1,167 1,055 RTO14613 1,036 0,936
RTF909 1,036 0,936 RTO9509A 1,397 1,261 RT11710B 1,036 0,936 RTOF14613 1,036 0,936
RTF909A 1,036 0,936 RTO9509B 1,167 1,055 RT11715 1,036 0,936 RTOO14613 1,167 1,055
RTO909A 1,400 1,264 RTOF9509A 1,397 1,261 RTO11715 1,310 1,183 RTOOF14613 1,167 1,055
RTO909B 1,400 1,264 RTOF9509B 1,167 1,055 RT12509 1,036 0,936 RTOOX14613 1,167 1,055
RTOF909A 1,400 1,264 MRTO9509A 1,397 1,261 RTF12509 1,036 0,936 RT14615 1,036 0,936
RTOF909B 1,400 1,264 MRTO9509B 1,167 1,055 RTO12509 1,400 1,264 RTO14615 1,310 1,183
RT910 1,036 0,936 RT9513 1,036 0,936 RTOF12509 1,400 1,264 RTX14615 1,310 1,183
RTF910 1,036 0,936 RTF9513 1,036 0,936 RT12510 1,036 0,936 RTLOF14618A 1,036 0,936
RTO910 1,283 1,158 RTO9513 1,036 0,936 RTO12510 1,315 1,188 RTOX14708LL 1,397 1,261
RT913 1,036 0,936 RTOF9513 1,036 0,936 RTF12510 1,036 0,936 RT14710B 1,036 0,936
RTF913 1,036 0,936 MRT9513 1,036 0,936 RTOF12510 1,315 1,188 RTO14710B 1,386 1,252
RTO 913 1,036 0,936 MRTO9513 1,036 0,936 RT12513 1,036 0,936 RT14715 1,036 0,936
RTO913A 1,036 0,936 RTOO9513 1,167 1,055 RTO12513 1,036 0,936 RTO14715 1,310 1,183
RTOF913 1,036 0,936 RT11509 1,036 0,936 RT12515 1,036 0,936 RTX14715 1,310 1,183
RT915 1,036 0,936 RTO11509 1,397 1,261 RTF12515 1,036 0,936 RTLO14718B 1,167 1,055
RTF915 1,036 0,936 RT11608 0,851 0,768 RTO12515 1,036 0,936 RT15613 1,036 0,936
RTO915 1,283 1,158 RTO11608LL 1,386 1,252 RT12609A 1,036 0,936 RT15613A 1,036 0,936
T955GL 1,036 0,936 RT11609A 1,036 0,936 RTO12609A 1,397 1,261 RT15613B 1,036 0,936
RT958LL 1,400 1,264 RTF11609A 1,036 0,936 RTO12609B 1,167 1,055 RTO15613 1,036 0,936
RTO958LL 1,400 1,264 RTO11609A 1,386 1,252 RT12610 1,036 0,936 RTO15613A 1,036 0,936
RT1110 1,036 0,936 RTO11609B 1,167 1,055 RT12709H 1,009 0,912 RTO15613B 1,036 0,936
RTO1110 1,315 1,188 RTX11609A 1,386 1,252 RT12710B 1,036 0,936 RT15615 1,167 1,055
RTO1213 1,036 0,936 RTX11609B 1,140 1,030 RTO12710B 1,386 1,252 RTO15615 1,036 0,936
RTO1258LL 1,400 1,264 RTOF11609A 1,386 1,252 RTX12710B 1,386 1,252 RTO15618 1,036 0,936
TA4510 1,036 0,936 RTOF11609B 1,167 1,055 RT13710B 1,036 0,936 RT15715 1,036 0,936
RT6609 0,747 0,675 RTOX11609A 1,386 1,252 RT14608 0,851 0,768 RTO15715 1,310 1,183
RTO6609 0,934 0,844 MRT11609 1,036 0,936 RTO14608LL 1,386 1,252 RTLO16618A 1,036 0,936
RTX6609 0,935 0,844 RT11610 1,036 0,936 RT14609A 1,036 0,936 RTLO16718B 1,167 1,055
RTOX6609 0,934 0,844 RTO11610 1,310 1,183 RTF14609A 1,036 0,936 RTLO18718B 1,167 1,055

RELACIÓN INTERNA EC



transmisión

RELACIÓN

transmisión

RELACIÓN

transmisión

RELACIÓN

transmisión

RELACIÓN
1(96%) 2 (89%) 1(96%) 2 (89%) 1(96%) 2 (89%) 1(96%) 2 (89%)
RT509 0,860 0,796 RT6610 0,854 0,791 RT11613 1,184 1,097 RTO14609A 1,584 1,467
RT510 0,860 0,796 RTO6610 1,067 0,989 RT11613C 1,184 1,097 RTO14609B 1,334 1,236
RT609 0,860 0,796 RT6613 0,854 0,791 RTF11613 1,184 1,097 RTX14609A 1,584 1,467
RTO609 1,067 0,989 RTO6613 1,068 0,989 RTO11613 1,184 1,097 RTX14609B 1,302 1,207
RT610 0,860 0,796 RT7609 0,860 0,796 RTOF11613 1,184 1,097 RTOF14609A 1,584 1,467
RT613 0,860 0,796 RTO7609 1,134 1,051 RTOO11613 1,334 1,236 RTOF14609B 1,334 1,236
RTO613 1,067 0,989 RTX7609 1,134 1,051 RTOOF11613 1,334 1,236 RTOX14609B 1,334 1,236
T905G 1,184 1,097 TA7610 1,184 1,097 RTOOX11613 1,334 1,236 RT14610 1,184 1,097
RT906 1,184 1,097 RT7613 0,854 0,791 RTX11613B 1,584 1,467 RTO14610 1,497 1,386
RT906A 1,184 1,097 RTO7613 0,854 0,791 RT11615 1,184 1,097 RT14613 1,184 1,097
RTF906 1,184 1,097 RT8608L 0,957 0,886 RTO11615 1,497 1,386 RT14613B 1,184 1,097
RTF906A 1,184 1,097 RT9509A 1,184 1,097 RTOX11708LL 1,596 1,478 RTF14613 1,184 1,097
RT909 1,184 1,097 RT9509C 1,184 1,097 RT11709H 1,153 1,068 RTLO14613B 1,184 1,097
RT909A 1,184 1,097 RTF9509A 1,184 1,097 RTX11709B 1,334 1,236 RTO14613 1,184 1,097
RTF909 1,184 1,097 RTO9509A 1,596 1,478 RT11710B 1,184 1,097 RTOF14613 1,184 1,097
RTF909A 1,184 1,097 RTO9509B 1,334 1,236 RT11715 1,184 1,097 RTOO14613 1,334 1,236
RTO909A 1,600 1,481 RTOF9509A 1,596 1,478 RTO11715 1,497 1,386 RTOOF14613 1,334 1,236
RTO909B 1,600 1,481 RTOF9509B 1,334 1,236 RT12509 1,184 1,097 RTOOX14613 1,334 1,236
RTOF909A 1,600 1,481 MRTO9509A 1,596 1,478 RTF12509 1,184 1,097 RT14615 1,184 1,097
RTOF909B 1,600 1,481 MRTO9509B 1,334 1,236 RTO12509 1,600 1,481 RTO14615 1,497 1,386
RT910 1,184 1,097 RT9513 1,184 1,097 RTOF12509 1,600 1,481 RTX14615 1,497 1,386
RTF910 1,184 1,097 RTF9513 1,184 1,097 RT12510 1,184 0,097 RTLOF14618A 1,184 1,097
RTO910 1,466 1,357 RTO9513 1,184 1,097 RTO12510 1,503 1,392 RTOX14708LL 1,596 1,478
RT913 1,184 1,097 RTOF9513 1,184 1,097 RTF12510 1,184 1,097 RT14710B 1,184 1,097
RTF913 1,184 1,097 MRT9513 1,184 1,097 RTOF12510 1,503 1,392 RTO14710B 1,584 1,467
RTO 913 1,184 1,097 MRTO9513 1,184 1,097 RT12513 1,184 1,097 RT14715 1,184 1,097
RTO913A 1,184 1,097 RTOO9513 1,334 1,236 RTO12513 1,184 1,097 RTO14715 1,497 1,386
RTOF913 1,184 1,097 RT11509 1,184 1,097 RT12515 1,184 1,097 RTX14715 1,497 1,386
RT915 1,184 1,097 RTO11509 1,596 1,478 RTF12515 1,184 1,097 RTLO14718B 1,334 1,236
RTF915 1,184 1,097 RT11608 0,972 0,900 RTO12515 1,184 1,097 RT15613 1,184 1,097
RTO915 1,466 1,357 RTO11608LL 1,584 1,467 RT12609A 1,184 1,097 RT15613A 1,184 1,097
T955GL 1,184 1,097 RT11609A 1,184 1,097 RTO12609A 1,596 1,478 RT15613B 1,184 1,097
RT958LL 1,600 1,481 RTF11609A 1,184 1,097 RTO12609B 1,334 1,236 RTO15613 1,184 1,097
RTO958LL 1,600 1,481 RTO11609A 1,584 1,467 RT12610 1,184 1,097 RTO15613A 1,184 1,097
RT1110 1,184 1,097 RTO11609B 1,334 1,236 RT12709H 1,153 1,068 RTO15613B 1,184 1,097
RTO1110 1,503 1,392 RTX11609A 1,584 1,467 RT12710B 1,184 1,097 RT15615 1,334 1,236
RTO1213 1,184 1,097 RTX11609B 1,302 1,207 RTO12710B 1,584 1,467 RTO15615 1,184 1,097
RTO1258LL 1,600 1,481 RTOF11609A 1,584 1,467 RTX12710B 1,584 1,467 RTO15618 1,184 1,097
TA4510 1,184 1,097 RTOF11609B 1,334 1,236 RT13710B 1,184 1,097 RT15715 1,184 1,097
RT6609 0,854 0,791 RTOX11609A 1,584 1,467 RT14608 0,972 0,900 RTO15715 1,497 1,386
RTO6609 1,067 0,989 MRT11609 1,184 1,097 RTO14608LL 1,584 1,467 RTLO16618A 1,184 1,097
RTX6609 1,068 0,989 RT11610 1,184 1,097 RT14609A 1,184 1,097 RTLO16718B 1,334 1,236
RTOX6609 1,067 0,989 RTO11610 1,497 1,386 RTF14609A 1,184 1,097 RTLO18718B 1,334 1,236

RELACIÓN INTERNA JE



transmisión

RELACIÓN

transmisión

RELACIÓN

transmisión

RELACIÓN

transmisión

RELACIÓN
1(96%) 2 (89%) 1(96%) 2 (89%) 1(96%) 2 (89%) 1(96%) 2 (89%)
RT509 1,021 0,913 RT6610 1,014 0,907 RT11613 1,406 1,258 RTO14609A 1,881 1,682
RT510 1,021 0,913 RTO6610 1,267 1,134 RT11613C 1,406 1,258 RTO14609B 1,584 1,417
RT609 1,021 0,913 RT6613 1,014 0,907 RTF11613 1,406 1,258 RTX14609A 1,881 1,682
RTO609 1,267 1,134 RTO6613 1,268 1,134 RTO11613 1,406 1,258 RTX14609B 1,547 1,384
RT610 1,021 0,913 RT7609 1,021 0,913 RTOF11613 1,406 1,258 RTOF14609A 1,881 1,682
RT613 1,021 0,913 RTO7609 1,347 1,205 RTOO11613 1,584 1,417 RTOF14609B 1,584 1,417
RTO613 1,267 1,134 RTX7609 1,347 1,205 RTOOF11613 1,584 1,417 RTOX14609B 1,584 1,417
T905G 1,406 1,258 TA7610 1,406 1,258 RTOOX11613 1,584 1,417 RT14610 1,406 1,258
RT906 1,406 1,258 RT7613 1,014 0,907 RTX11613B 1,881 1,682 RTO14610 1,778 1,589
RT906A 1,406 1,258 RTO7613 1,014 0,907 RT11615 1,406 1,258 RT14613 1,406 1,258
RTF906 1,406 1,258 RT8608L 1,137 1,015 RTO11615 1,778 1,589 RT14613B 1,406 1,258
RTF906A 1,406 1,258 RT9509A 1,406 1,258 RTOX11708LL 1,895 1,695 RTF14613 1,406 1,258
RT909 1,406 1,258 RT9509C 1,406 1,258 RT11709H 1,369 1,225 RTLO14613B 1,406 1,258
RT909A 1,406 1,258 RTF9509A 1,406 1,258 RTX11709B 1,584 1,417 RTO14613 1,406 1,258
RTF909 1,406 1,258 RTO9509A 1,895 1,695 RT11710B 1,406 1,258 RTOF14613 1,406 1,258
RTF909A 1,406 1,258 RTO9509B 1,584 1,417 RT11715 1,406 1,258 RTOO14613 1,584 1,417
RTO909A 1,900 1,698 RTOF9509A 1,895 1,695 RTO11715 1,778 1,589 RTOOF14613 1,584 1,417
RTO909B 1,900 1,698 RTOF9509B 1,584 1,417 RT12509 1,406 1,258 RTOOX14613 1,584 1,417
RTOF909A 1,900 1,698 MRTO9509A 1,895 1,695 RTF12509 1,406 1,258 RT14615 1,406 1,258
RTOF909B 1,900 1,698 MRTO9509B 1,584 1,417 RTO12509 1,900 1,698 RTO14615 1,778 1,589
RT910 1,406 1,258 RT9513 1,406 1,258 RTOF12509 1,900 1,698 RTX14615 1,778 1,589
RTF910 1,406 1,258 RTF9513 1,406 1,258 RT12510 1,406 1,258 RTLOF14618A 1,406 1,258
RTO910 1,741 1,556 RTO9513 1,406 1,258 RTO12510 1,785 1,596 RTOX14708LL 1,895 1,695
RT913 1,406 1,258 RTOF9513 1,406 1,258 RTF12510 1,406 1,258 RT14710B 1,406 1,258
RTF913 1,406 1,258 MRT9513 1,406 1,258 RTOF12510 1,785 1,596 RTO14710B 1,881 1,682
RTO 913 1,406 1,258 MRTO9513 1,406 1,258 RT12513 1,406 1,258 RT14715 1,406 1,258
RTO913A 1,406 1,258 RTOO9513 1,584 1,417 RTO12513 1,406 1,258 RTO14715 1,778 1,589
RTOF913 1,406 1,258 RT11509 1,406 1,258 RT12515 1,406 1,258 RTX14715 1,778 1,589
RT915 1,406 1,258 RTO11509 1,895 1,695 RTF12515 1,406 1,258 RTLO14718B 1,584 1,417
RTF915 1,406 1,258 RT11608 1,154 1,032 RTO12515 1,406 1,258 RT15613 1,406 1,258
RTO915 1,741 1,556 RTO11608LL 1,881 1,682 RT12609A 1,406 1,258 RT15613A 1,406 1,258
T955GL 1,406 1,258 RT11609A 1,406 1,258 RTO12609A 1,895 1,695 RT15613B 1,406 1,258
RT958LL 1,900 1,698 RTF11609A 1,406 1,258 RTO12609B 1,584 1,417 RTO15613 1,406 1,258
RTO958LL 1,900 1,698 RTO11609A 1,881 1,682 RT12610 1,406 1,258 RTO15613A 1,406 1,258
RT1110 1,406 1,258 RTO11609B 1,584 1,417 RT12709H 1,369 1,225 RTO15613B 1,406 1,258
RTO1110 1,785 1,596 RTX11609A 1,881 1,682 RT12710B 1,406 1,258 RT15615 1,584 1,417
RTO1213 1,406 1,258 RTX11609B 1,547 1,384 RTO12710B 1,881 1,682 RTO15615 1,406 1,258
RTO1258LL 1,900 1,698 RTOF11609A 1,881 1,682 RTX12710B 1,881 1,682 RTO15618 1,406 1,258
TA4510 1,406 1,258 RTOF11609B 1,584 1,417 RT13710B 1,406 1,258 RT15715 1,406 1,258
RT6609 1,014 0,907 RTOX11609A 1,881 1,682 RT14608 1,154 1,032 RTO15715 1,778 1,589
RTO6609 1,267 1,134 MRT11609 1,406 1,258 RTO14608LL 1,881 1,682 RTLO16618A 1,406 1,258
RTX6609 1,268 1,134 RT11610 1,406 1,258 RT14609A 1,406 1,258 RTLO16718B 1,584 1,417
RTOX6609 1,267 1,134 RTO11610 1,778 1,589 RTF14609A 1,406 1,258 RTLO18718B 1,584 1,417

Información adicional

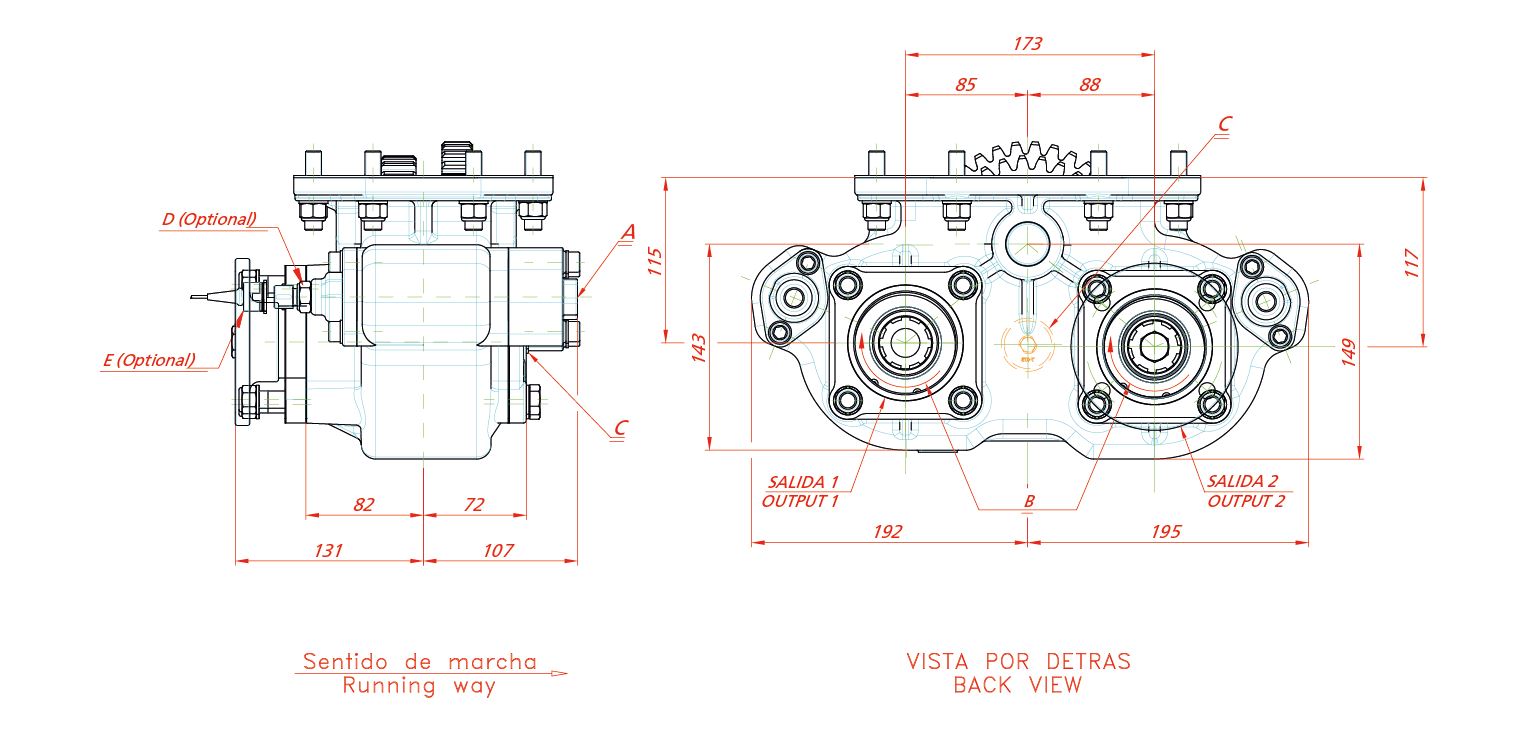

Dimensiones N/D
Weight (Kg)

34

Mounting Position

Arriba

Par máx. continuo en ambas salidas conjuntas

600 Nm

Máx. potencia @ 1000 r.p.m. en ambas salidas conjuntas

85 C.V. // 63 kW

Continuous Torque (Nm)

400

Intermittent Torque (Nm)

570

Power

57 C.V // 42 kW

Pump rotation

Derecho

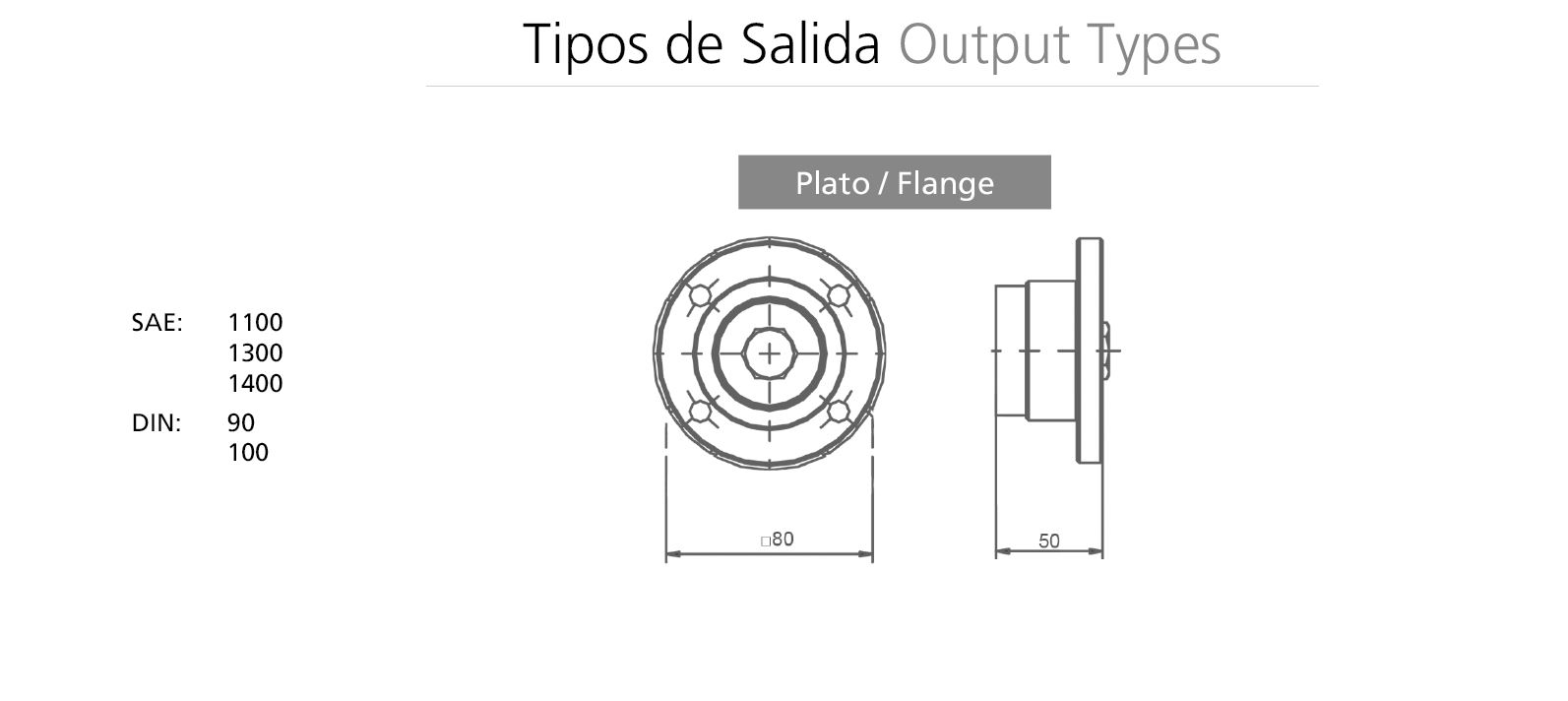

Output type

Pump-Flange, Flange-Pump, Flange-Flange, Pump-Pump

Internal ratio

CB, EC, JE

Note A

Engage PTO, thread 1/4” BSP

Note B

Comprobación juego de engranajes

Note C

Solenoid 24V DC (12V DC optional)

Note D

Passing contact switch. P/N 100070001

Nota E

Conector con 3m de cable. Código 906599
