Descripción

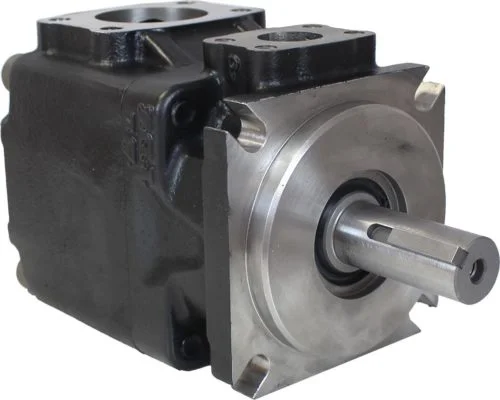

Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.
Available Flows: 14, 17, 20, 22, 24, 28, 31, 35, 38, 42, 45 & 50 Gal/min. @ 1200 rpm

FLOW SPEED (rpm) PRESSURE (bar) WEIGHT (kgs.)
Lts/min. at 1000 rpm 44 55 66 70 81 90 99 113 121 138 146 158 Min. Max. Intermit. Contin.
Gal/min.at 1200rpm 14 17 20 22 24 28 31 35 38 42 45 50 600 3000 300 250 29





Información adicional

Threads

,

Flow

, , , , , , , , , , ,

Shaft type

, , ,

Sentido de giro de la bomba

,

Ports combination

, , ,
