TDZ Hydraulics – Vane Pumps – Vane Motors – CETOP Valves

Bezares, manufacturer of TDZ-branded Hydraulic Vane Pumps, Motors, Cartridges and CETOP Valves is a global manufacturer of hydraulic equipment with more than 50 years of experience. Founded in 1964 in Spain, Bezares has grown into a leading supplier of hydraulic solutions for industrial and commercial vehicles. With a presence in over 100 countries, Bezares is committed to providing high-quality products and excellent customer service.

TDZ Hydraulics, now part of the Bezares Group, has been manufacturing hydraulic equipment for the automotive sector and industrial machinery since 1939. With headquarters in Casarrubios del Monte, Toledo, Spain, TDZ has been producing top-quality products for over 80 years

Bezares: Hydraulic systems - TDZ Vane Pumps

In August 2010, Bezares acquired all of TDZ’s assets, including machinery, inventory, designs, and customer portfolio, to continue TDZ’s production of hydraulic pumps and motors.

Vane Pumps and Motors

TDZ manufactures a wide range of hydraulic products, including vane pumps, vane motors, replacement cartridges, and CETOP valves. Their vane pumps and motors are manufactured in a wide range of displacements, from 3 c.c./rev. to 269 c.c./rev for single pumps and hundreds of flow combinations for double and triple pumps.

TDZ’s vane pumps and motors have a low power to weight ratio, high efficiency, and a low noise level. The pumps’ ease of maintenance is achieved by the pump design, where the working components are contained within a cartridge that can be quickly and easily replaced without disconnecting the pump from the prime mover.

TDZ’s vane pumps and motors are also hydraulically balanced, reducing wear and eliminating bearing loads from within the pump. The option to rotate the outlet port in relation to the inlet port provides flexibility and easy installation. Depending on the application, there are two versions available: low noise industrial and mobile application models.

In addition to vane pumps and motors, TDZ also offers a variety of CETOP valves, which provide efficient and reliable control of hydraulic circuits. TDZ’s replacement cartridges are also designed to offer a cost-effective solution for maintenance and repair of hydraulic equipment.

In conclusion, TDZ Hydraulics, now part of the Bezares Group, has a long history of providing innovative hydraulic solutions to the automotive and industrial sectors. With a wide range of vane pumps, vane motors, replacement cartridges, and CETOP valves, TDZ offers high-quality products that are efficient, reliable, and easy to maintain. Contact Bezares today to learn more about TDZ’s products and how they can benefit your operations.

TYPESERIESDisplacement
(CC/rev or Gal at 1200RPM)
Max. Speed
(r.p.m.)
Max. Pressure
(bar)
TDZ Design
Single Vane Pump
BHP12,… 7 (cc)2500175
TDZ Design
Single Vane Pump
BHP4, BHP6, BHP726,…235 (cc)2500210
Denison design
Single Vane Pump (Very high pressure)
T7B6,…52 (cc)2800320
Denison Design Single Vane PumpT6C, T6D, T6E11,…270 (cc)2800275
Denison Design Double Vane Pump (Very high pressure)T7BB, T67CB,T67DB T67EB9,…270 (cc)2800320
Denison Design Double Vane PumpT6CC, T6DC, T6EC, T6ED11,…270 (cc)2800275
Denison Design Triple Vane Pump (Very high pressure)T67DBB, T67EDB9,…270 (cc)2800320
Denison Design Triple Vane PumpT6DCC, T6EDC11,…270 (cc)2800275
Vickers Design Single Vane PumpV10, V201,… 13 (Gal)4800175
Vickers Design Single Vane Pump20V*, 25V*, 35V*, 45V*2,… 72 (Gal)2500210
Vickers Design Double Vane Pump2520V*, 3520V*, 3525V*2,… 45 (Gal)2500210
Vickers Design Double Vane Pump4520V*, 4525V*, 4535V*2,…72 (Gal)2500210
Vickers Design Thru DriveVane Pump25VT*, 35VT*,45VT*8,… 72 (Gal)2500210
wdt_IDBezares (TDZ) Part NumberVickers' equivalent Part Number
1V000106VVP1-20-RRMM-30-CBK-10
2VV25S01VV25 WITHOUT CARTRIDGES SHAFT 1
3VV43S01VV43 WITHOUT CARTRIDGES SHAFT 1
4VV45S01VV45 WITHOUT CARTRIDGE SHAFT 1
5VTM4201VTM42/604520NOR114
6VTM4261VTM42/607017MFR1
7VTM4260VTM42/506517MAR1
8VTM4202VTM42/504520NOR114
9VTM4282VTM42/407517 F11 1
10VTM4280VTM42/406015F11R1
11VTM4303VTM42/404015NOL114
12VTM4203VTM42/404015NOR114
13VTM4263VTM42/404017MAL1
14VTM4281VTM42/404015F11R1
15VTM4304VTM42/403010F07R1
16VTM4205VTM42/403015NOL114
17VS7TC12VST7C/57D86A - THRU DRIVE
18VTM4204VTM42/202015NOR114
19VS7TC08VS7TC/67D86AA - THRU DRIVE
20VS7TC11VS7TC/60D86CB - THRU DRIVE
21VS7TC16VS7TC/60D86DA - THRU DRIVE
22VS7TC14/BWVS7TC/60DJA - THRU DRIVE
23VS7TC18VS7TC/60Y86AA
24VS7TC01VS7TC/60D86CA - THRU DRIVE
25VS7TC17VS7TC/47D86DC- THRU DRIVE
Bezares (TDZ) Part NumberVickers' equivalent Part Number

Necessary Information to choose a replacement cartridge: Pump’s rotation and if the cartridge kit is mounted in a single or double pump, (front body or rear cover cartridge kit).

Shafts -Seal kits and shaft seals – Miscellaneous Parts

• Keyed and splined for single, double, triple and thru drive pumps
• Seal kits and shaft seals for single, double, triple & thru drive pumps
• T6, T7, V and VQ series
• NBR & Viton seal kits and shaft seals (ask for different seal materials)
• Primary and secondary shaft seals
• Front body, inlet housing, rear cover, housing bolts, (4 units required), flex plates, bearings, etc…
For single, double, triple,and thru drive pumps.

Replacement CartridgeGallons @ 1200RPM
For Vickers 20V / 20VQ5, 8, 9, 11, 12, 14
For Vickers 25V / 25VQ8, 12, 14, 17, 19, 21, 24
For Vickers 30V / 30VQ24, 28
For Vickers 35V / 35VQ21, 25, 30, 35, 38, 45
For Vickers 45V / 45VQ42, 47, 50, 57, 60, 67, 75
For Denison T7B2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 15
For Denison T6C3, 5, 6, 8, 10, 12, 14, 17,20, 22, 25, 28, 31
For Denison T6D14, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61
For Denison T6E42, 45, 50, 52, 62, 66, 72, 85
TYPESERIESDisp.
(CC/rev or
Gal at
1200RPM)
Max. Speed
(r.p.m.)
Max. Pressure
(bar)
SingleMH4D52,… 115 (cc)3000210
SingleM4C25,… 100 (cc)3600210

CETOP Valves

CETOP Valves

Looking for high-quality CETOP valves to maximize the control of your hydraulic system? Bezares / TDZ Hydraulics has got you covered! Our directional, pressure, and flow control valves provide the flexibility you need to ensure your system operates smoothly and efficiently.

With a diverse selection of CETOP valve styles and operating capabilities to choose from, Bezares / TDZ valves offer unlimited possibilities for customizing your system’s valve combinations. Our valves’ versatile designs, along with their various porting, spool action, and circuit options, provide you with unmatched flexibility and control.

At Bezares / TDZ, we offer a comprehensive range of CETOP modular valves, including check valves, flow control valves, and pressure control valves. We also provide a complete line of directional control valves in CETOP 3, 5, 7, 8, and 10 that can be operated via AC/DC voltages.

Choose Bezares / TDZ Hydraulics for high-quality CETOP valves that are reliable, efficient, and easy to maintain. With our valves, you can achieve the precision control your hydraulic system needs to perform at its best. Contact us today to learn more about our products and how they can benefit your operations.

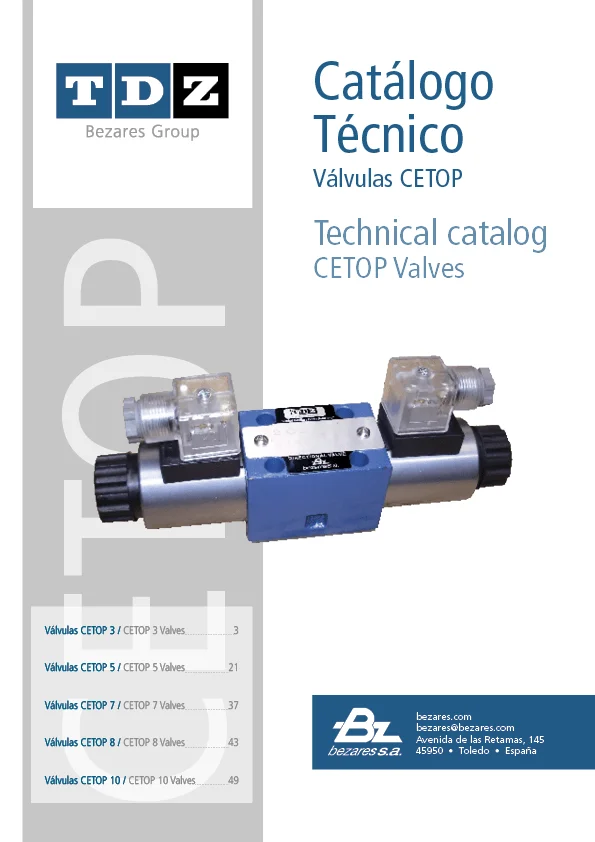

CETOP valves and manifolds catalog – TDZ

Solenoid Directional Control Valves

Max. Pressure350 bar, (5000 psi)
Max flowISO 03, (CETOP 3): 80 (31) l/min. (GPM)
ISO 05, (CETOP 5): 120 (50) l/min. (GPM)
RemarksOptional terminal box, DIN plug-in connector,
any worldwide current and frequency
are available upon request.

Pilot Operated Directional Control Valves

Max. Pressure315 bar, (4500 psi)
Max flowISO 07, (CETOP 7): 300 (80), l/min (GPM)
ISO 08, (CETOP 8): 500 (132), l/min. (GPM)
ISO 10, (CETOP 10): 1100 (290), l/min (GPM)

Check Valves

Pilot operated check valves

Modular Systems & CETOP Valves

Max. Pressure210 bar, (3000 psi)
Max flow70 l.p.m., (20 GPM)
Port Size1/4”, 3/8”
Model• Modular Relief Valve,
• Modular Pressure Reducing Valve,
• Modular Throttle Valve,
• Modular Throttle and Check Valve,
• Modular Check Valve,
• Modular Pilot Check Valve,
• Modular Solenoid Check Valve,
• Multi-station manifold Blocks,
• Modular sub-plates.
