SKU: 07220K03 Categories: , Tag:

Description

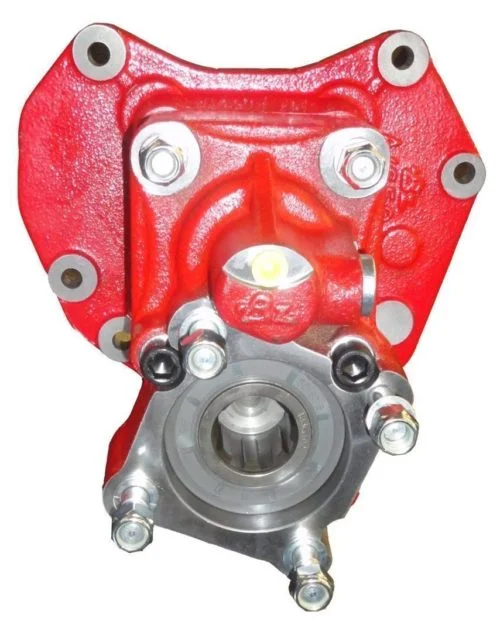

Base PTO + flange kit (without shaft), internal ratio 1:1,5 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch and adapter shaft.

RATIO
Normal High
ENGINE TO PTO RATIO G131-9/14.57-1.0 1:1,129
G210-16/14.2-0.83 1:1,300 1:1,576
G141-9/14.57-1.0, G211-16/17.0, G231-16/17.0, G241-16K/17.0-1.0 1:1,086 1:1,300
G221-9/16.15-1.0 1:1,132
G240-16/11.7, G280-16K/11.72-0.69, G280-16/11.72-0.69 NewAMT 1:1,576 1:1,897
G260-16/9.75-0.57 1:1,897 1:2,295
G211-12K/14.93-1.0, G211-12/14.93-1.0 NewAMT,
G281-12K/14.93-1.0, G281-12K/14.93-1.0, G281-12/14.93-1.0 NewAMT
1:1,239 1:1,576
G230-12K/11.67-0.78, G230-12/11.67-0.78 NewAMT, G230-16S/
14.2-0.83, G330-12K/11.64-0.78, G330-12/11.64-0.78 NewAMT
1:1,576 1:2,020

Additional information

Gearbox

, , , , , , , , , , , , , , , , , , ,

Continuous Torque (Nm)

Intermittent Torque (Nm)

Mounting Position

Pump rotation

Weight (Kg)

Note A

Note B

Note C

Note D

Note E

Note F
