Description

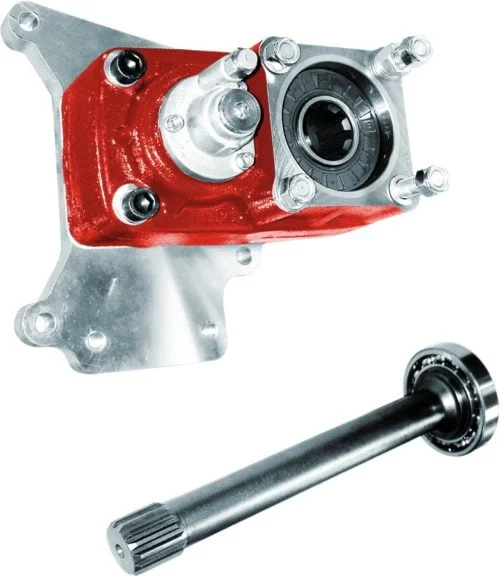

Heavy Duty Power Take-off 2 gears, with two internal ratios mounting on rear 9 bolts-opening of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch.

Internal Ratio 1:1,04 1:1,26
Torque (Nm) Continuous 600 500
Intermittent 800 700
Power (HP) 1000 r.p.m 85 C.V // 64 kW 70 C.V // 52 kW
Mounting position Rear
Pump rotation ClockWise
Weight (Kg) 18
Engine to PTO ratio ATTACHMENT I ATTACHMENT II



ATTACHMENT  I
Engine to PTO ratio 12AS-2331TD / 1631TD / 1931TD / 2131TD / 2141TD / 2341TD / 2301TD / 2431TD /15,86-1,0 IT 0,853
12AS-2540TD / 2430TD / 2340TD / 2140TD / 2130TD / 1930TD / 1630TD / 2330TD /15,86-1,0
16AS-2630TO / 2601TO /14.12-0,83 1,154
16AS-2631TO /14,12-0,83 IT
12AS-1800 /14,89-1,0 IT 0,79
16AS-2230TD /17,03-1,0
16AS-2601TD / 2231TD / 2601TD /17,03-1,0 IT
16AS-2200 /15,89-1,0 IT 0,738
12AS-2940TO / 2740TO / 2540TO / 2530TO / 2330TO /12,29-0,78 1,404
12AS-1930TO / 1931TO / 2130TO / 2131TO / 2301TO / 2330TO / 2331TO / 2530TO / 2531TO / 2541TO / 2741TO / 2941TO /12,33-0,78
12AS-2741TO / 2941TO /12.29-0.78 IT
ATTACHMENT  II
Engine to PTO ratio 12AS-2331TD / 1631TD / 1931TD / 2131TD / 2141TD / 2341TD / 2301TD / 2431TD /15,86-1,0 IT 1,033
12AS-2540TD / 2430TD / 2340TD / 2140TD / 2130TD / 1930TD / 1630TD / 2330TD /15,86-1,0
16AS-2630TO / 2601TO /14.12-0,83 1,399
16AS-2631TO /14,12-0,83 IT
12AS-1800 /14,89-1,0 IT 0,958
16AS-2230TD /17,03-1,0
16AS-2601TD / 2231TD / 2601TD /17,03-1,0 IT
16AS-2200 /15,89-1,0 IT 0,895
12AS-2940TO / 2740TO / 2540TO / 2530TO / 2330TO /12,29-0,78 1,701
12AS-1930TO / 1931TO / 2130TO / 2131TO / 2301TO / 2330TO / 2331TO / 2530TO / 2531TO / 2541TO / 2741TO / 2941TO /12,33-0,78
12AS-2741TO / 2941TO /12.29-0.78 IT



Additional information

Note A

Note B

Note C

Note D

Note E

Note F

Gearbox

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
